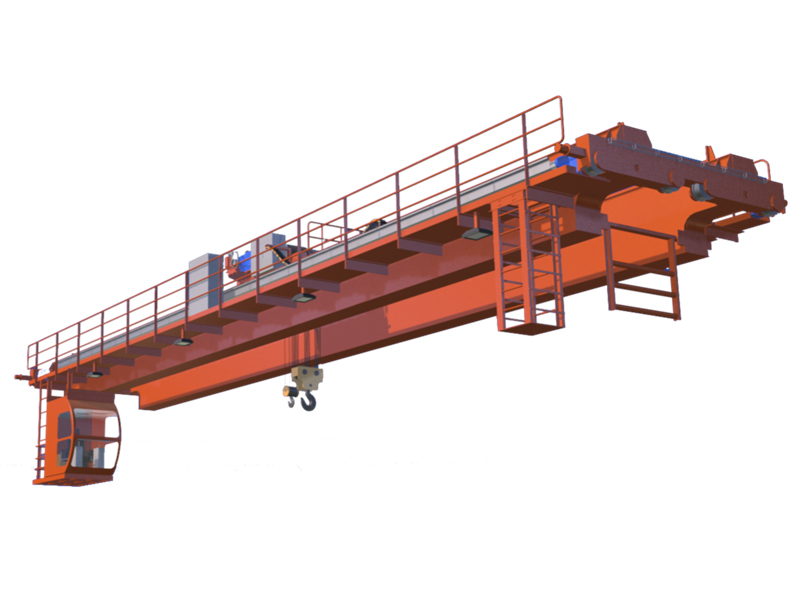

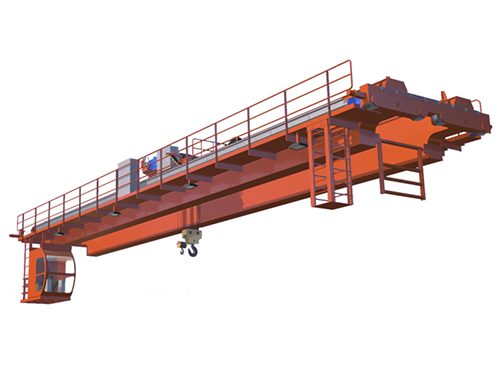

EOT crane is a new generation of technologically innovative lifting equipment.
This electric overhead travelling crane has compact structure, wide work range, light dead weight, small dimension, low noise, low impact force and high stability.

Features
  • Improved speed control, faster and more accurate load positioning
  • Increase the operation range of the crane
  • High transmission efficiency and strong bearing capacity
  • Compact structure, low noise, no oil leak, long lifetime
  • Light dead weight (reduce 15%-30% weight)
Two Types of EOT Cranes Available

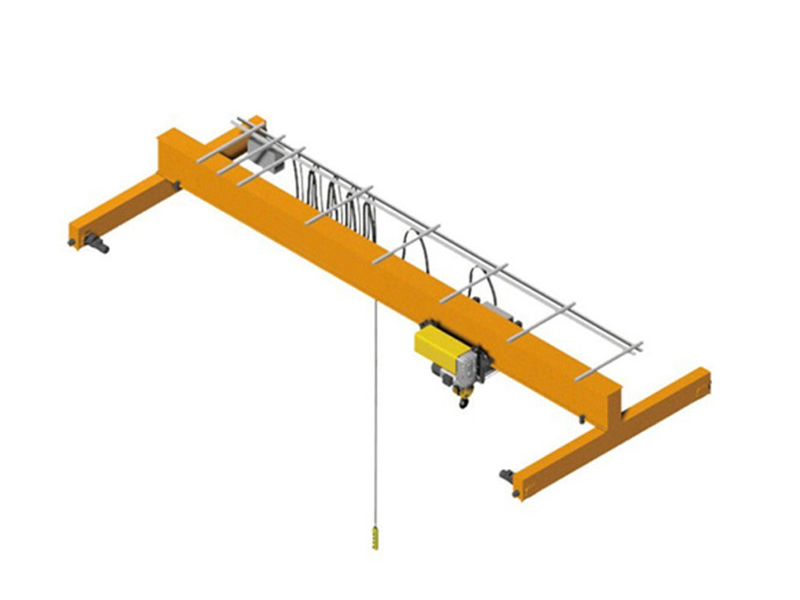

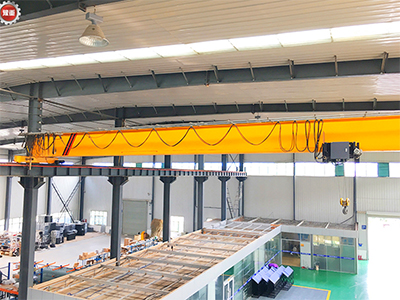

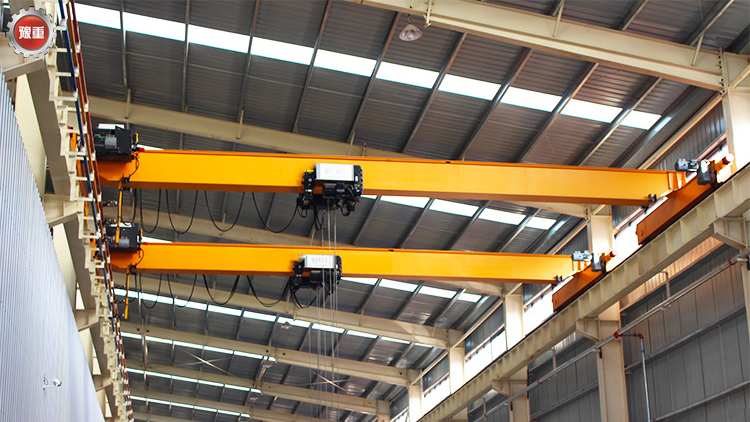

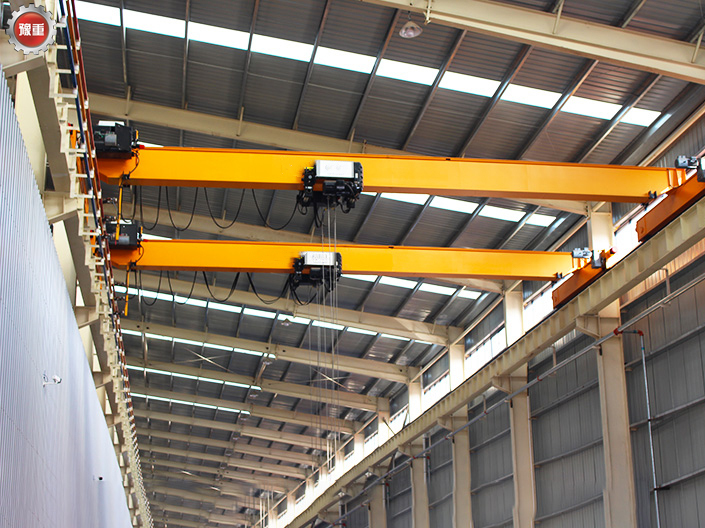

1）Single Girder EOT Crane
  • EOT Crane
  • EOT Crane
  • EOT Crane
Specification
Capacity 1.0t-20t
Span 10.5m-31.5m
Lifting height 6-30m
Working class A5-A7
Power supply 380V 50Hz, 3phase or customized
Control method Radio remote control, pendant control
Brands of main electric parts Schneider and ABB
Motor brand ABB and Siemens
Protection level IP55
Working temperature -20~60℃

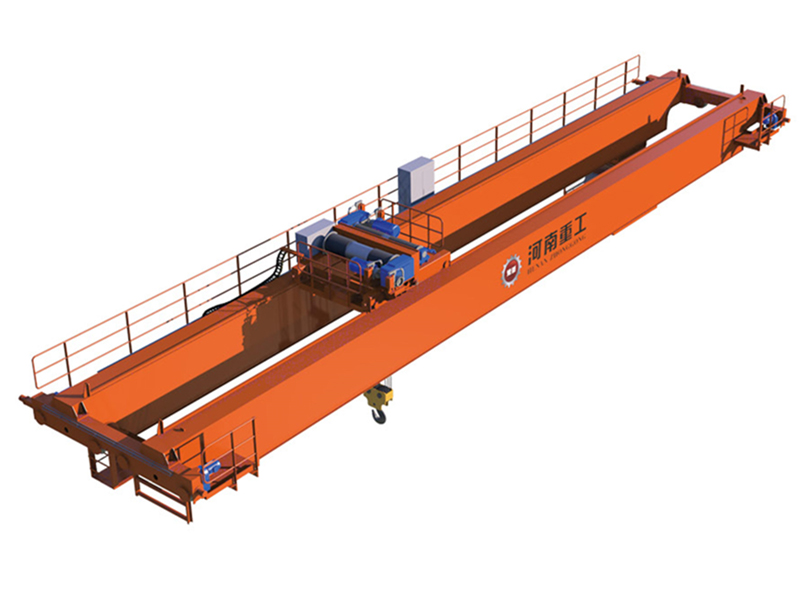

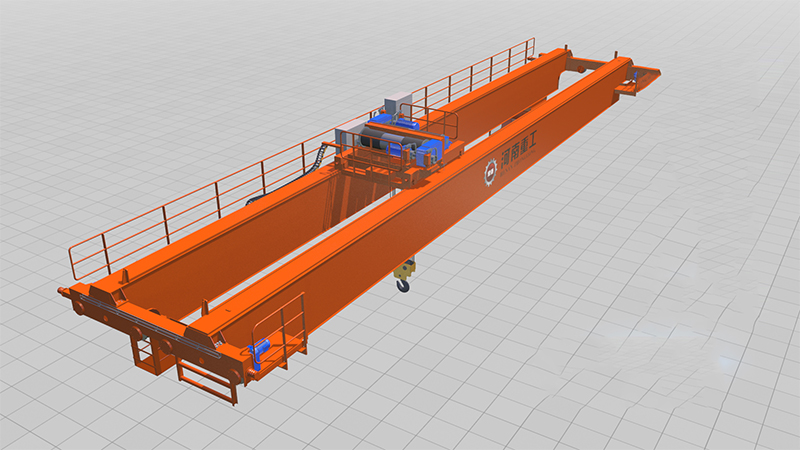

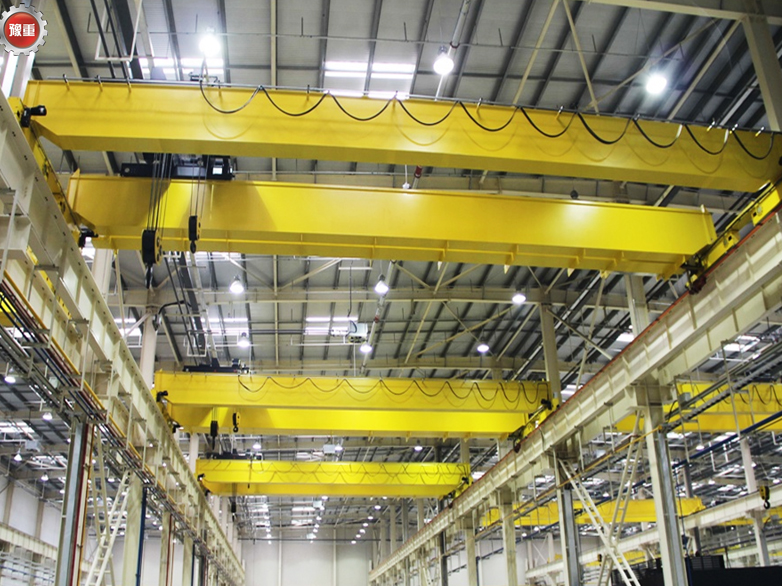

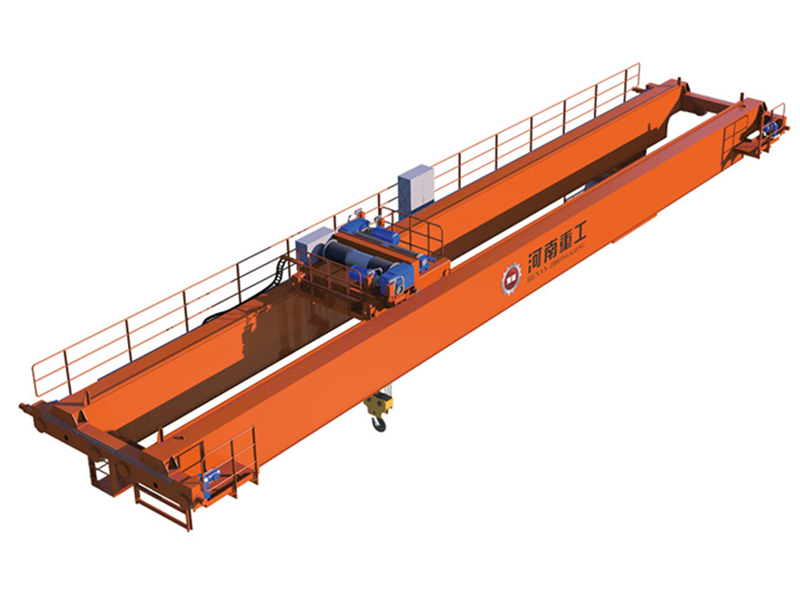

2）Double Girder EOT Crane
  • EOT Crane
  • EOT Crane
  • EOT Crane
Specification
Capacity 1.0t-80t
Span 10.5m-31.5m
Lifting height 6-30m
Work class A5-A7
Power supply 380V 50Hz, 3phase or customized
Control method Radio remote control, pendant control
Brands of main electric parts Schneider and ABB
Motor brand ABB and Siemens
Protection level IP55
Working temperature -20~60℃
Structure of EOT Crane
    1. EOT Crane
    2. Main beam

      Use bias-rail box type structure, with optimized design and light dead weight

      Material: Q235B

    1. EOT Crane

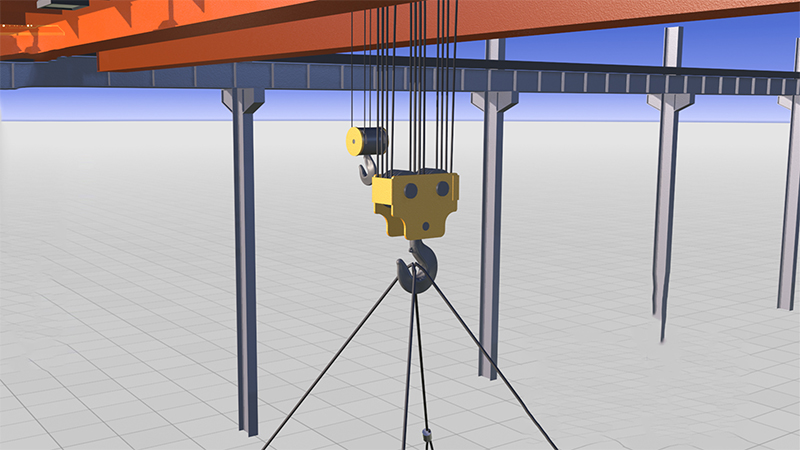

    2. Hook

      The hook limitation is very small, which improves the utilization rate of the working site.

    1. EOT Crane

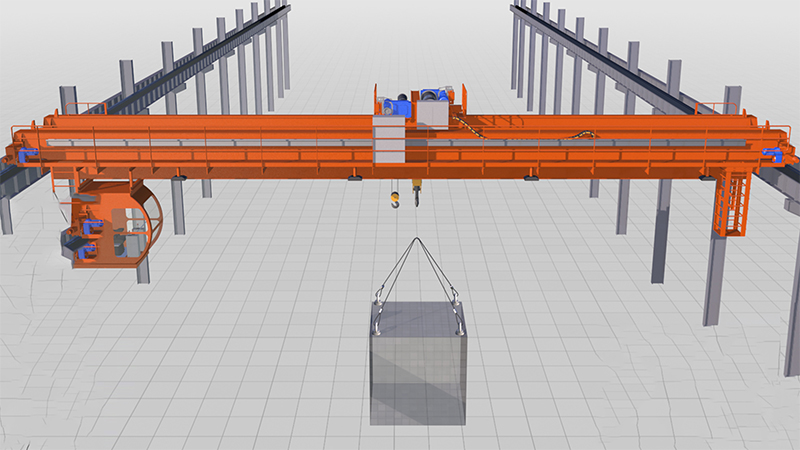

    2. Frequency Conversion Control

      Ensures load-sway reduction

      Makes the load positioning faster and more accurate

    1. EOT Crane

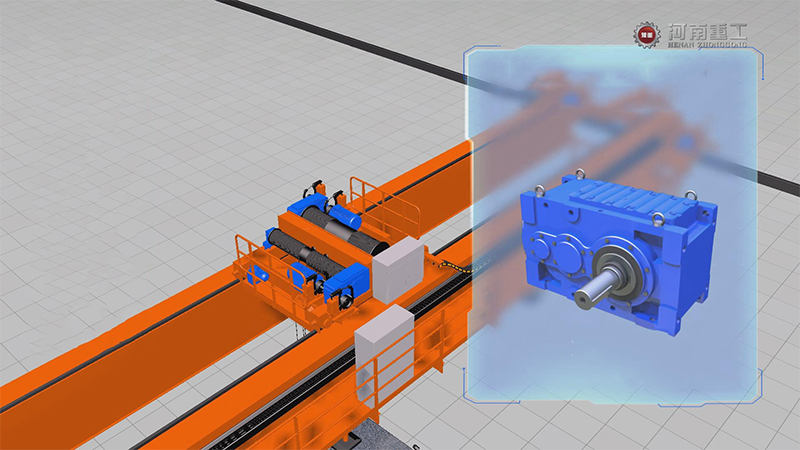

    2. Lifting Mechanism

      Adopts hard gear reducer
      High transmission efficiency
      Strong bearing capacity

    1. EOT Crane

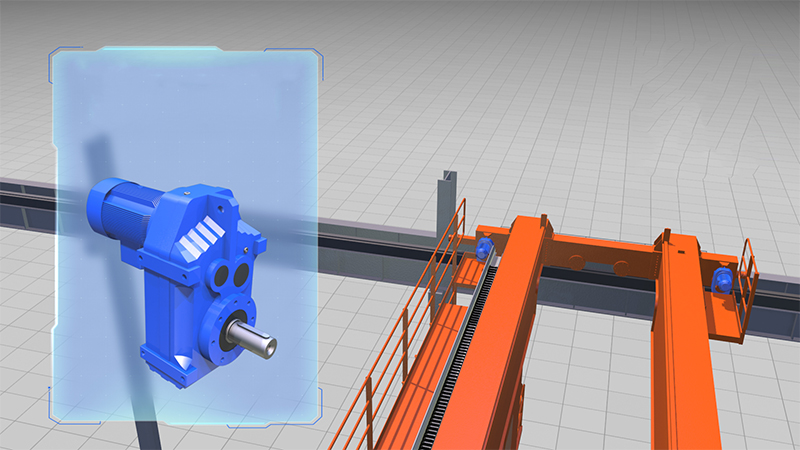

    2. Travelling Mechanism

      Adopts 3 in 1 reducer
      Compact structure, low noise, no oil leak, and long lifetime
      Realizes no maintenance

    1. EOT Crane
    2. Trolley Maintenance Platform

      Ensures electrical installation and mechanism repair
      The span of the work range>600mm
      The protection railing height is 1100mm
      With anti-slipping floor

    1. EOT Crane

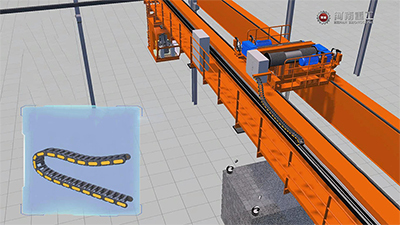

    2. Tow Chain Type Power Supply

      Trolley power supply adopts tow chain type, which protects cables and improves lifetime.

    1. EOT Crane

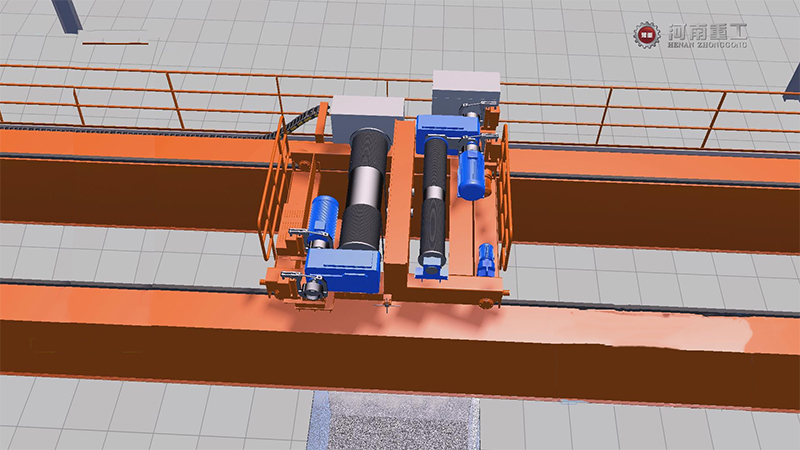

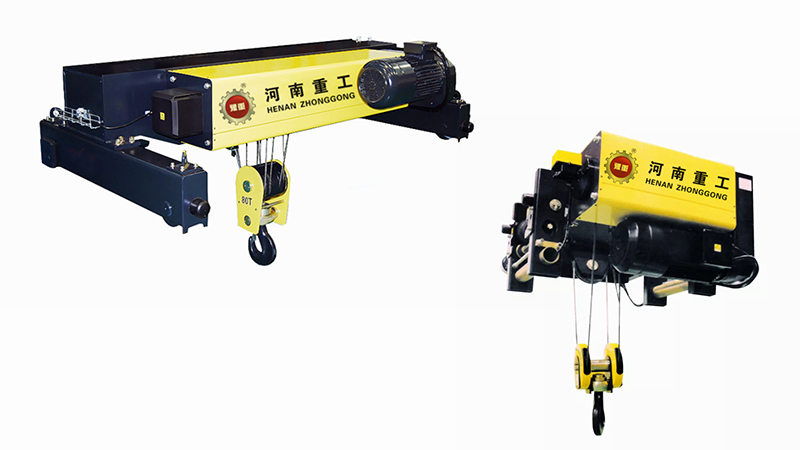

    2. Hoist & Trolley

      Reducer with aluminum alloy housing Steady running and low noise
      Lifetime lubricating
      Double-disk electromagnetic brake

    1. EOT Crane
    2. Components

      All components use the well-known brands such as ABB, Siemens, Schneider.
