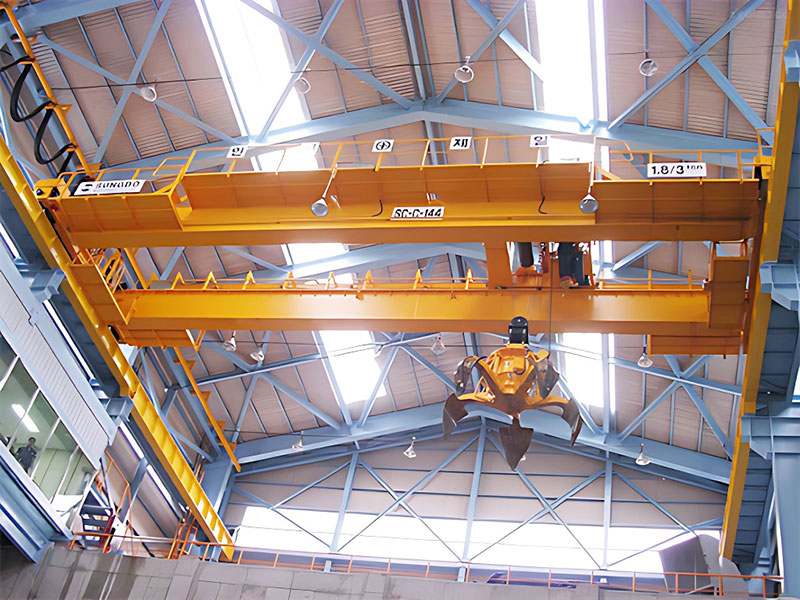

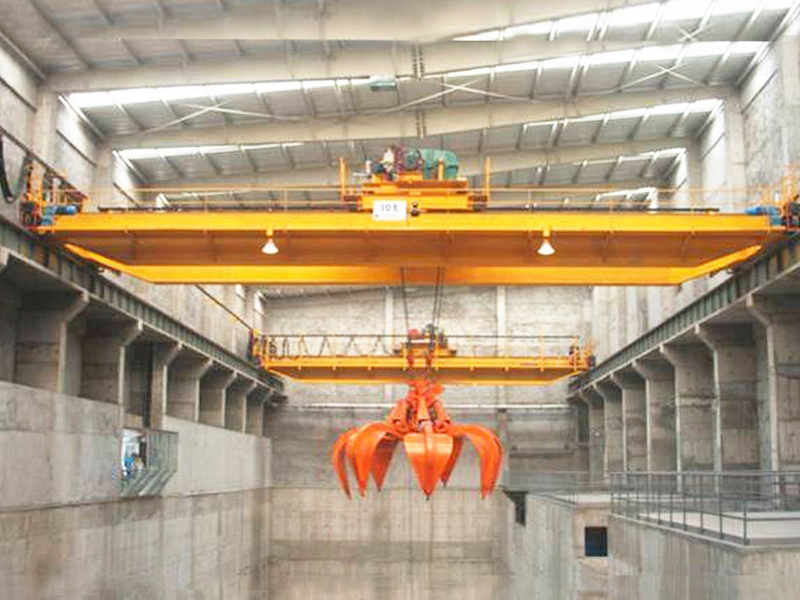

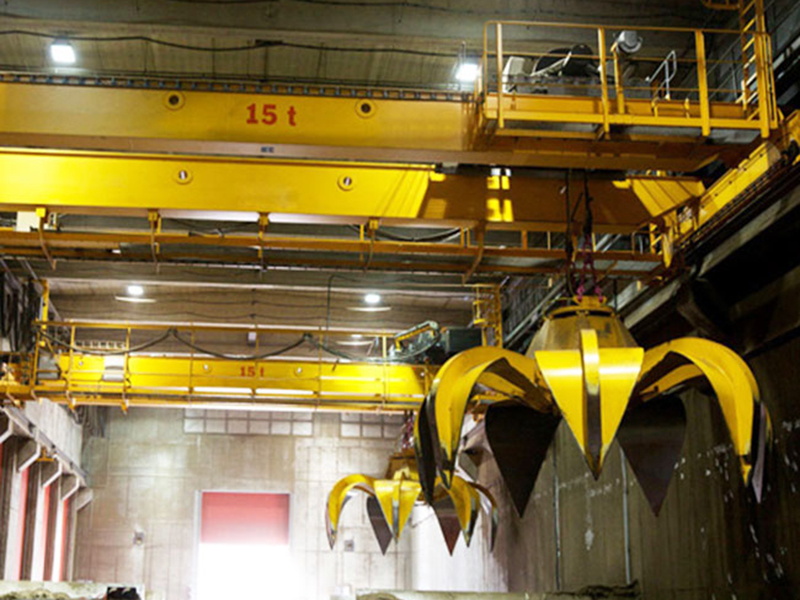

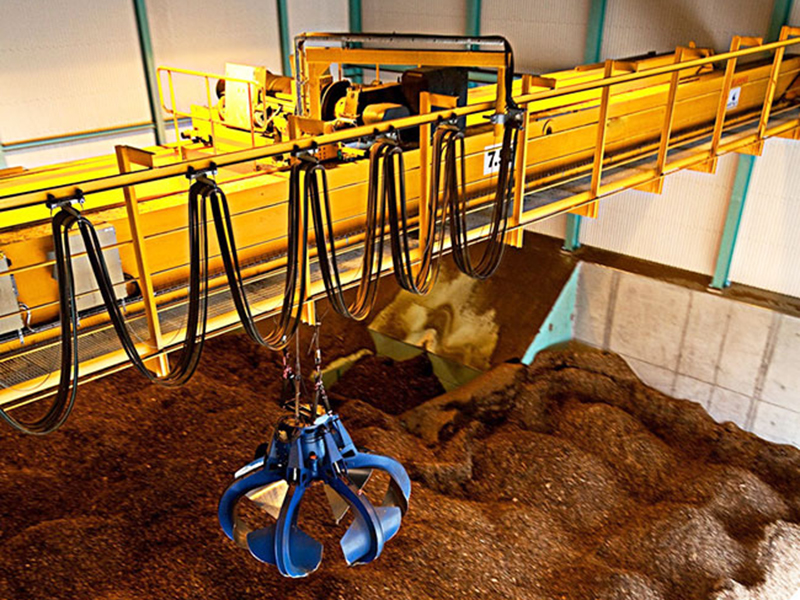

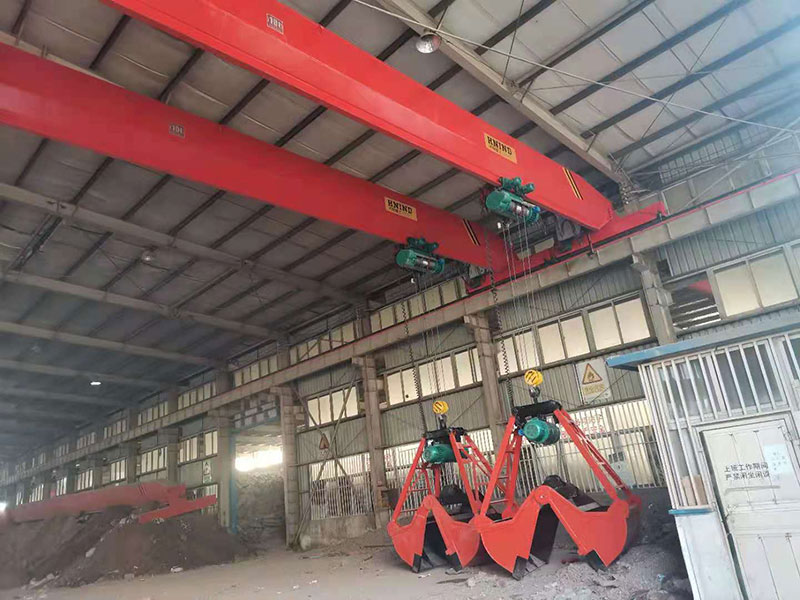

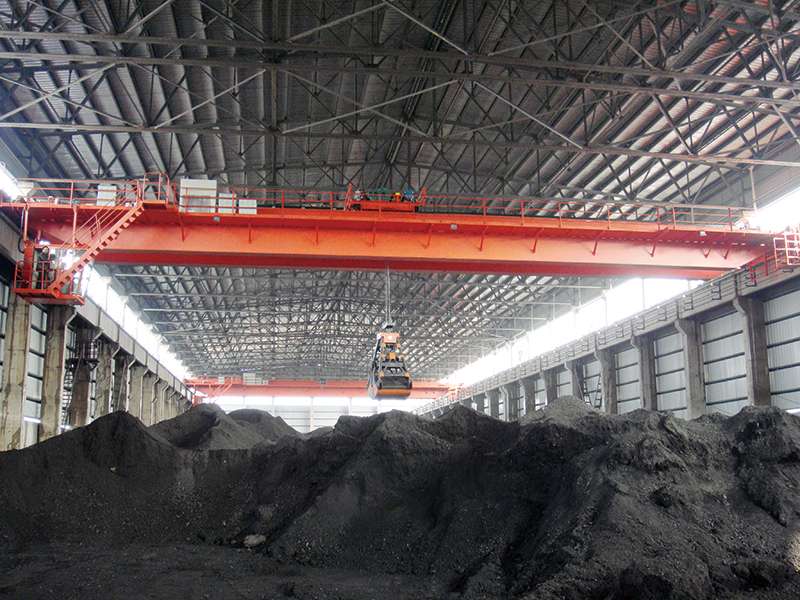

The lifting capacity of grab bridge crane is about 5-25 tons. It is widely used in power stations, warehouses, workshops, and ports for loading and unloading scattered objects. Grab bridge cranes are mainly used for medium to heavy lifting work.
Specification
Lifting capacity
5-25t
Lifting height
10-26m
Span
10.5-31.5m
Lifting speed
40.1-48.6 m/min
Trolley speed
87.3-113 m/min
Working class
A6
Working temperature
-25~40 °C
Power source
three-phase, 380V 50HZ
Control mode
Cabin control/remote control
Features
Mainly used for hoisting 5t~20t objects
The structure optimization of main beam is realized by computer design
Compact structure, light weight, good performance
Large span, high lifting height
Widely used in workshops, metallurgy, warehouses, assembly workshops
List of materials grabbed by various grab buckets
Grab type
Grab material
Material capacity weight(t/㎡)
Light
coke, slag, cereals, potatoes, medium anthracite lime, cement, soil, gravel, clay, broken brick, etc.
0.5-1.2
Medium
peat, large anthracite, compacted coal, clay, limestone, crushed stone, sale, gravel, brick, bauxite, flake iron oxide scale, cement, sand and brick in water, etc.
>1.2-2.0
Heavy
limestone, heavy clay, medium and small ores, hard stones, rod-shaped iron oxide scale, iron ore, lead concentrate powder, etc.
>2.0-2.6
Super heavy
large ore, large manganese ore, sedimentary agglomerated lead ore powder, etc.
2.6-3.3

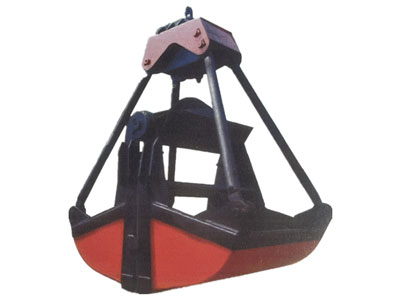

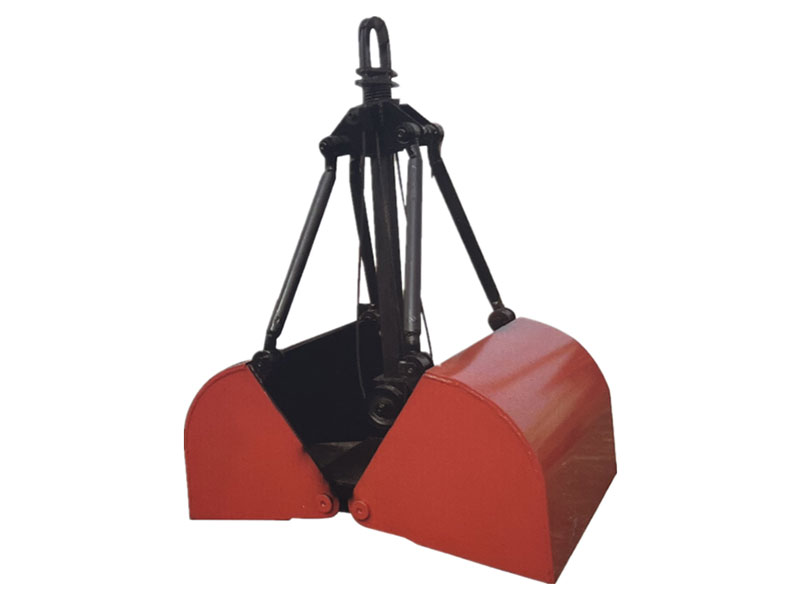

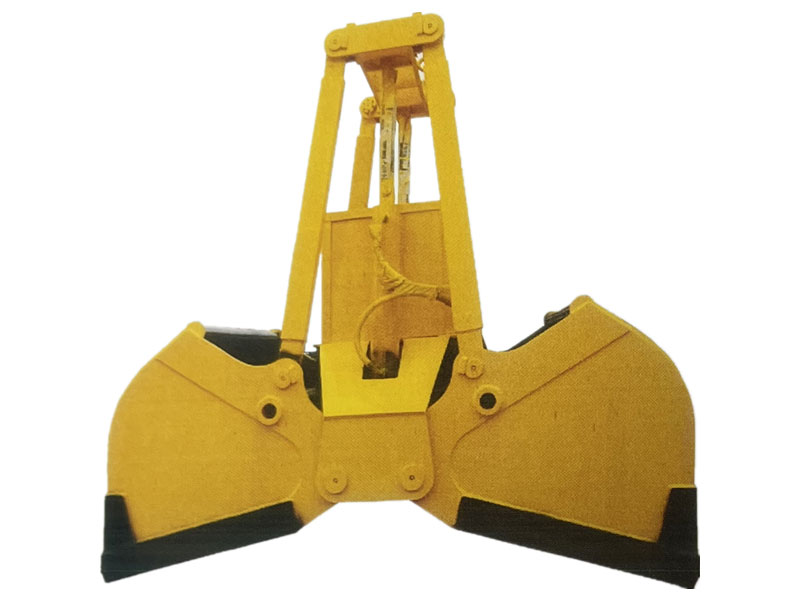

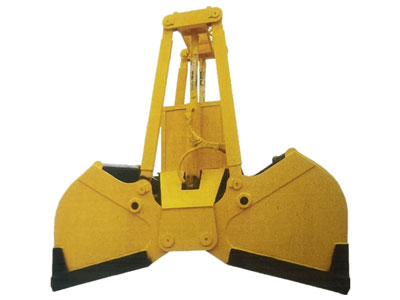

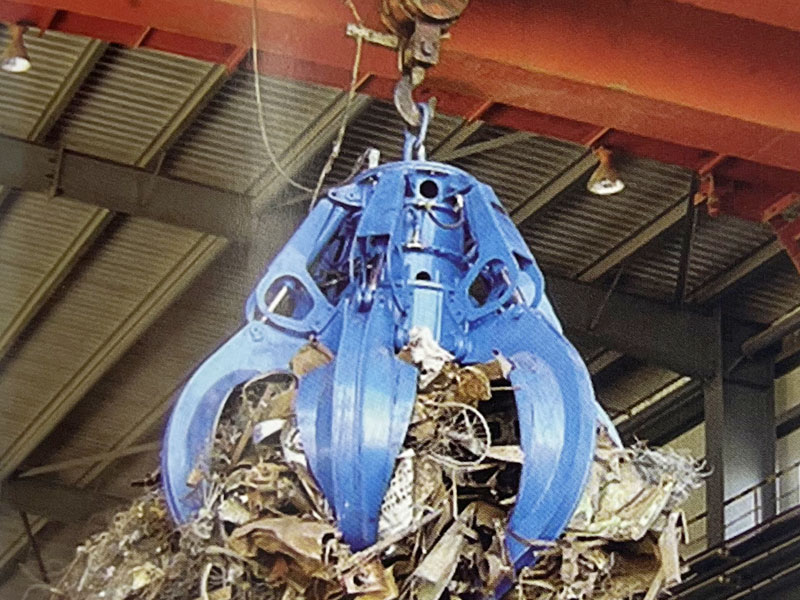

Type of Crane Grab

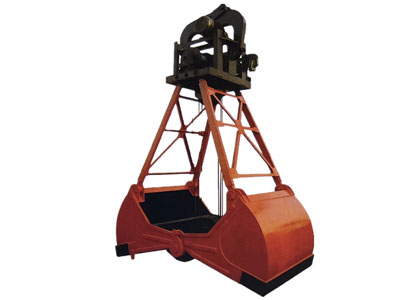

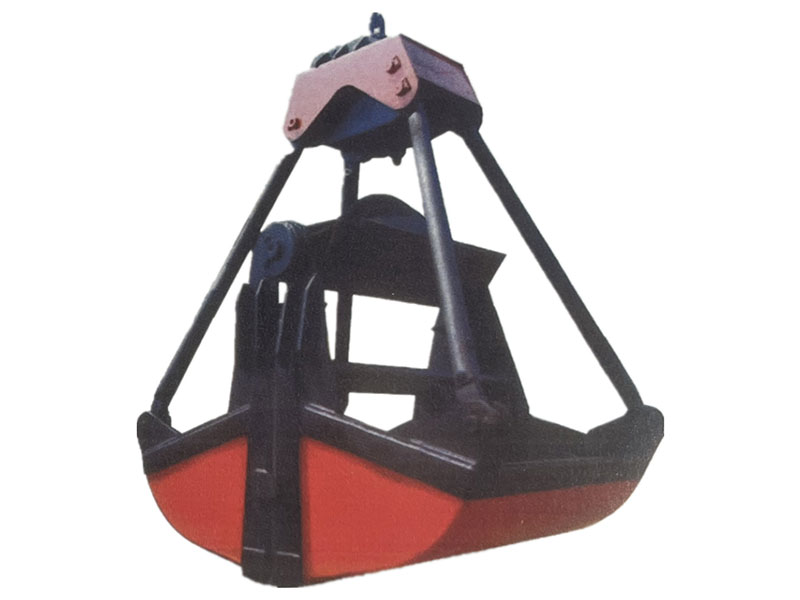

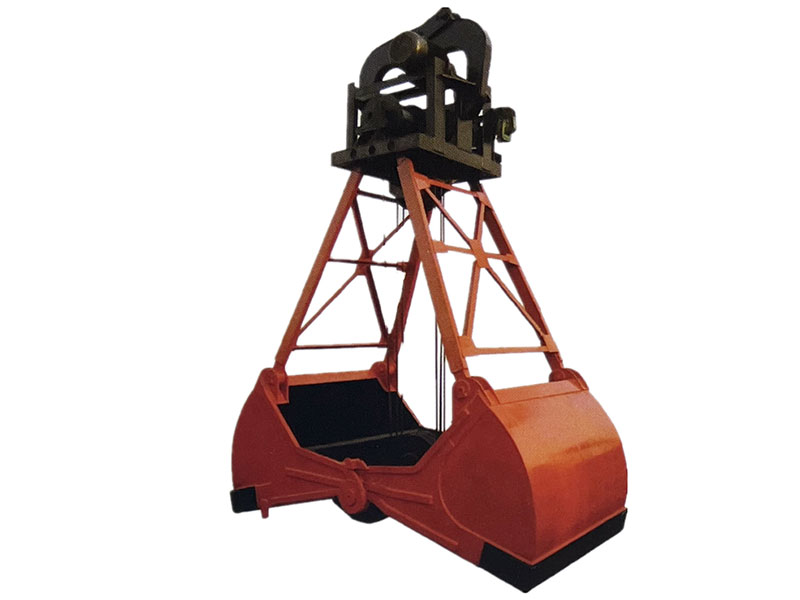

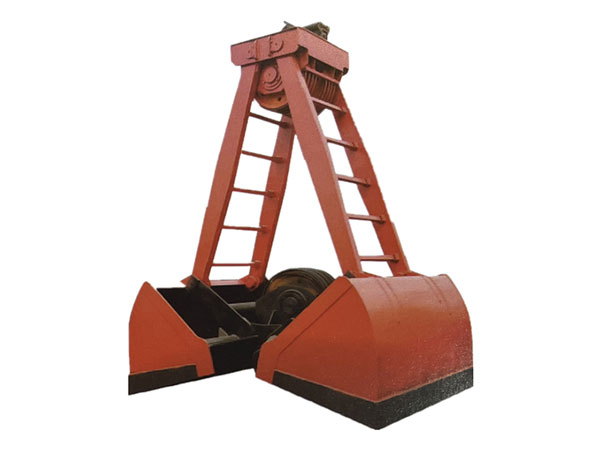

The grab of the grab bridge crane is divided into many types according to the structure and function, the most common is the four rope grab.
Whether you can supply technical supports or spare parts in time when the crane broke?
At any time, the online free technical support could be available. We can supply the spare parts for free within the warranty period and charge as per cost price when the warranty is invalid.
