Gantry crane is mainly used for outdoor cargo yard, warehouse floor and bulk cargo loading and unloading operations. Its metal structure is like a portal frame. Two stable blades are installed under the load beam. The gantry crane can directly walk on the ground. There can be legs at both ends of the girder to realize higher stability and bearing capacity.
We design, manufacture, install and maintain a wide range of gantry cranes, and we can also provide you with tailor-made material handling solutions.

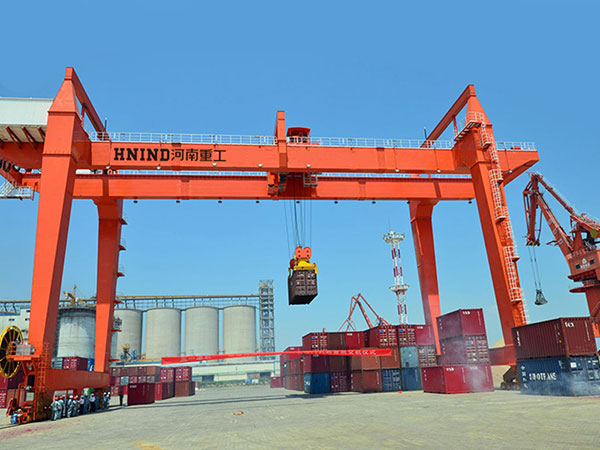

Rail mounted gantry cranes, also known as RMG, are large-scale terminal gantry cranes that are often used for loading and unloading containers. We can provide customers with customized lifting solutions according to the requirements of different heights and spans.
Single girder gantry cranes are bridge cranes for almost any application. With work duty of A3-A6, the gantry lifting equipment is used extensively in workshops, warehouses, freight yards, ports, hydropower stations, etc. This flexible crane is designed for lifting and transporting normal materials with loads from 1-20t.
Double girder gantry cranes are usually assembled with electric hoists, winches or trolleys. As common lifting equipment, they are divided into three types: light, medium and heavy cranes. The lifting weight is 5 to 500 tons, and the span is 18 to 50 meters. We can also customize it for you according to the needs of customers.
Semi gantry crane combines the advantages of the gantry crane and the bridge crane with a unique design. It is divided into two types: single beam semi-gantry crane and double beam semi-gantry crane. One end moves on the elevated track, and the other end moves on the ground track.
The mast straddle crane is a kind of special container crane with the lowest operation cost, which is specially used for container loading and transportation in small and medium-sized container freight yards and small and medium-sized enterprises.

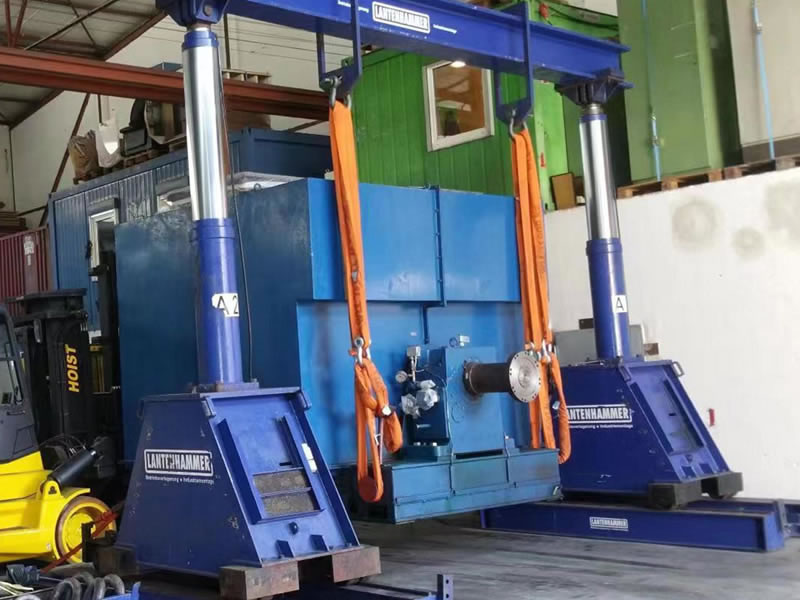

The hydraulic gantry crane is a type of light and small crane equipment that can move and rotate 360°. Universal load wheels are installed under the outriggers, which can move freely on flat ground. The main beam of the mast and the outrigger can be quickly disassembled and installed.

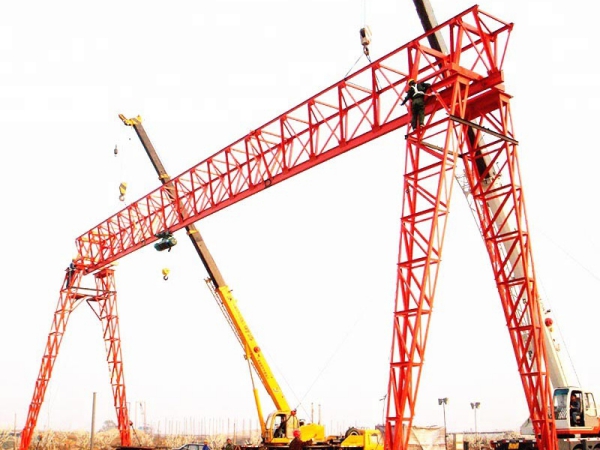

Truss gantry crane is a light crane used in places with strong winds. It has the characteristics of light weight, small lifting capacity and strong wind resistance. Being cost-effective, its cost is lower than that of box gantry cranes. Truss gantry crane is suitable for outdoor warehouses or tracks for handling and lifting work, and can be also combined with multiple lifting devices for special operations.

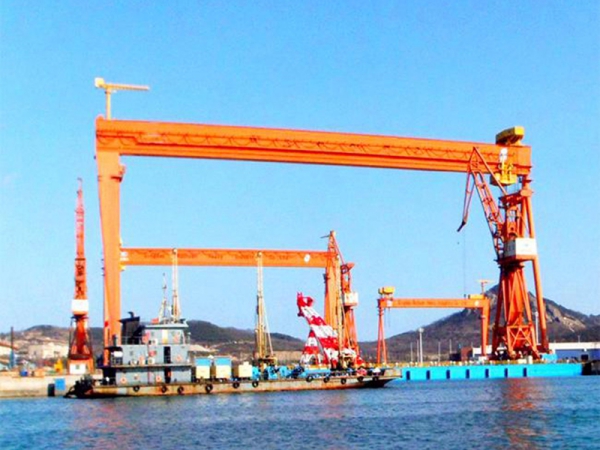

Shipyard gantry crane is a type of crane equipment for shipbuilding. It has the characteristics of large lifting capacity, large span, multi-function and high efficiency. It is often used for step-by-step transportation of ship body, butt joints, and aerial or in-situ turns. The structure of the outriggers and the main beam is box-shaped.

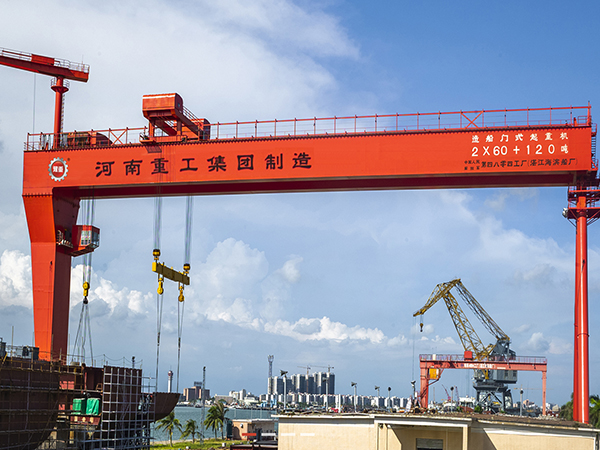

Shipbuilding gantry cranes are specially used for the transportation and docking of debris in docks (or berths). They have the characteristics of large lifting capacity, large span, high work efficiency and multiple functions.

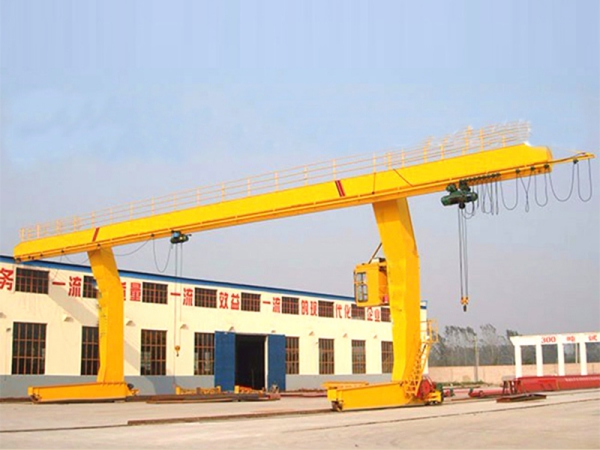

L type gantry crane is a single-beam gantry crane, and its cost is lower than that of a double-beam gantry crane. It has a wide range of applications and can be used for general lifting operations, such as loading and unloading, transporting, and transferring goods in storage yards and railway stations.

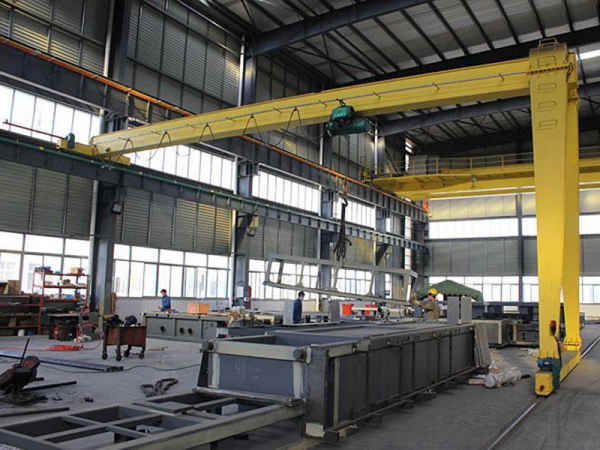

Single-beam semi-gantry cranes feature simple structure, easy installation, light weight, and good wind resistance. The main beams are mostly inclined rail box structures. Compared with the double beam crane, the lifting weight is smaller, generally ≤50t, and the span is ≤35m. It can be used with CD1 and MD1 hoist and is available with remote control and floor control.

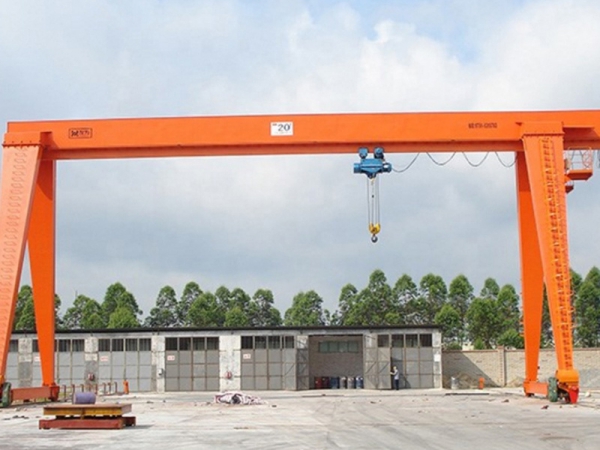

European standard gantry crane has high rigidity and strong stability. It adopts a steel structure and can transport materials very accurately at high processing speeds, and it runs stably without shaking.
