Single Girder Gantry Crane

Single Girder Gantry Crane
  • Single Girder Gantry Crane
  • Single Girder Gantry Crane
  • Single Girder Gantry Crane
  • Single Girder Gantry Crane
  • Single Girder Gantry Crane

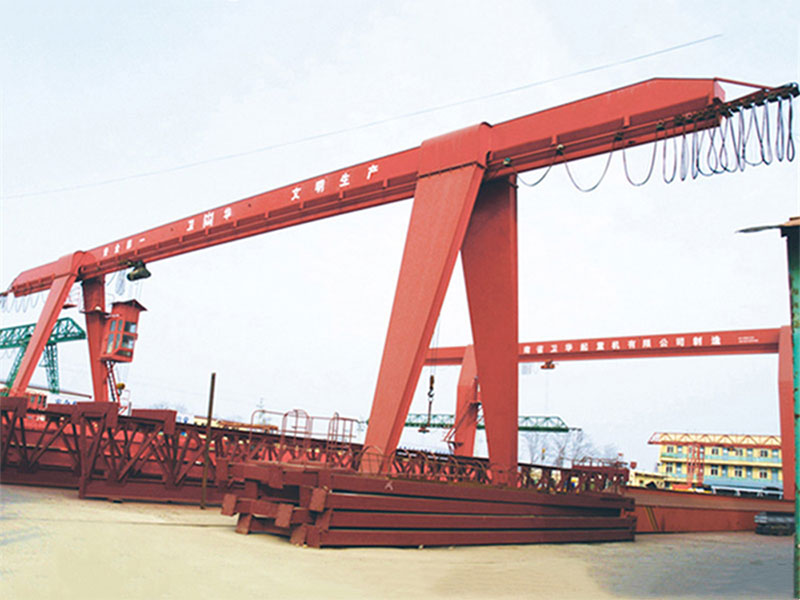

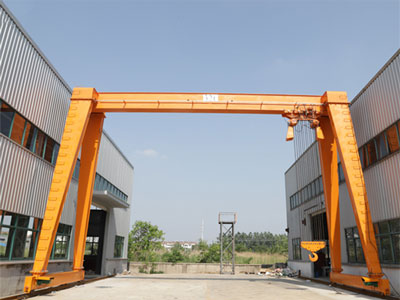

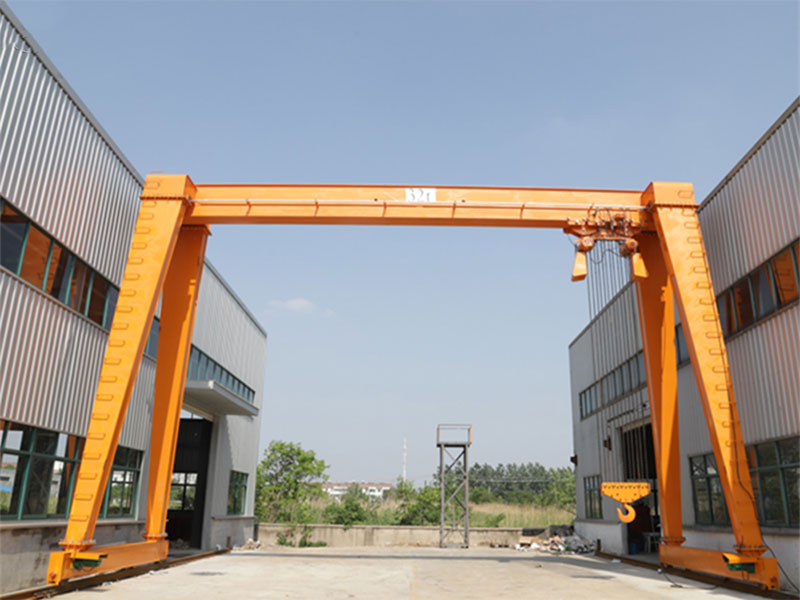

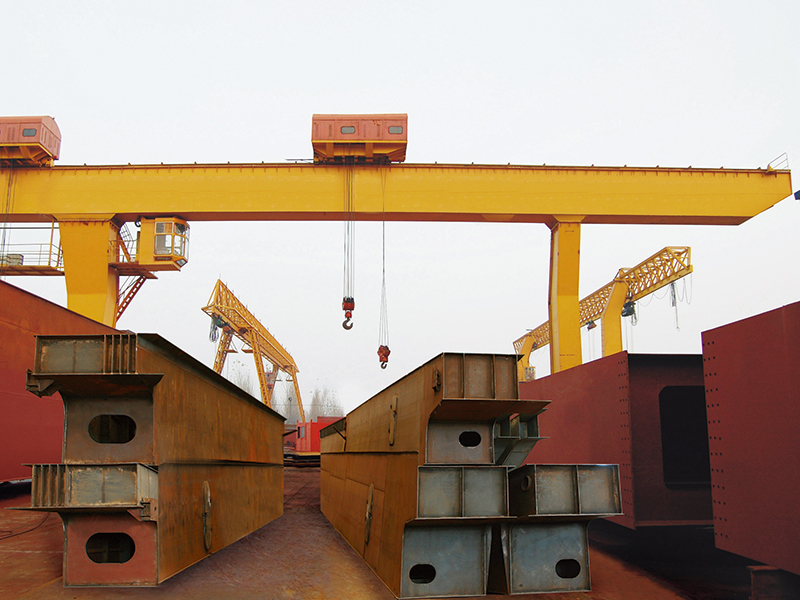

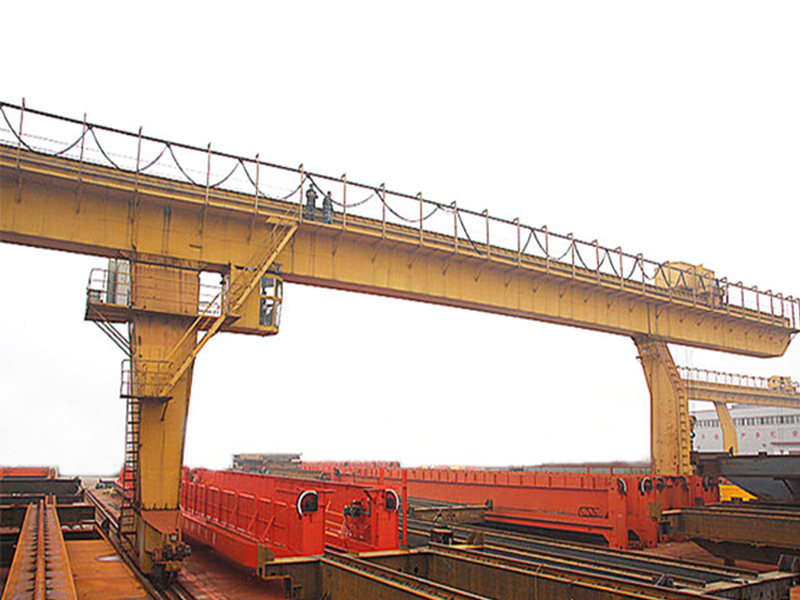

The single girder gantry crane features simple structure, easy installation, light weight, good wind resistance. The main girder is mostly bias rail box type structure. This gantry lifting equipment is widely used in open work sites, workshops, warehouses, stockyards to load/unload and transport goods or materials.

Specification
Load capacity Up to 125t
Track gauge Up to 31.5m
Power supply 220~440V, 50/60Hz, 3 phase
Working class A4~A7
Lifting height Customized
Features
  • Simple structure, easy to install and maintain
  • Strong lifting capacity
  • Low noise
  • Safe and reliable operation
  • Low maintenance cost and long service life
Application

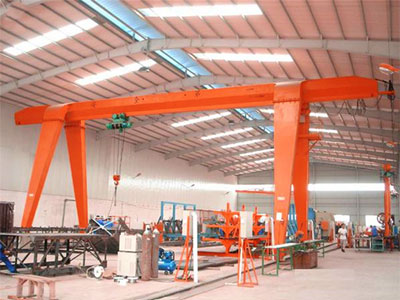

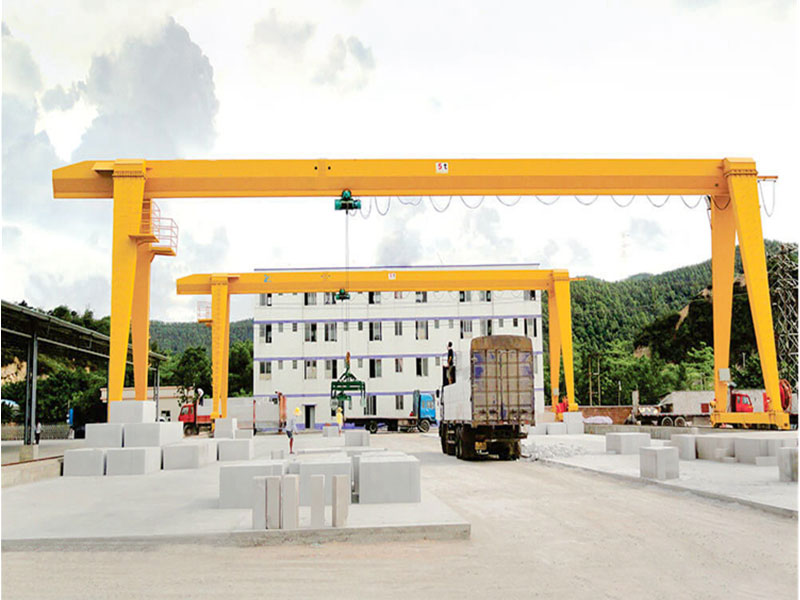

Single girder gantry crane is a type of bridge crane, which is widely used for lifting and moving materials from one location to another in the workshops, warehouses, stockyards, etc. This heavy duty lifting equipment is mounted on legs running on fixed rails or other runway, which maximizes the space utilization during material handling. It’s one of the most commonly used material handling cranes, which can adapt to various materials handling solutions. Single girder gantry crane is also a type of overhead crane, which is an ideal solution for lifting operations in a highly automated, safe and efficient manner.
