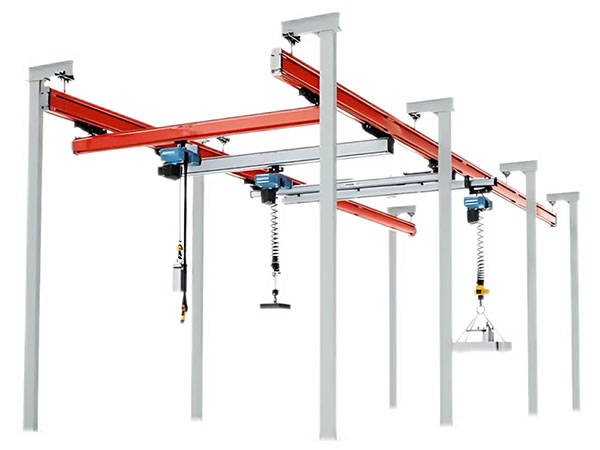

Freestanding Bridge Crane
Freestanding bridge crane is composed of suspension device, track, switch, trolley, electric hoist, mobile power device and control device. Hanging on the roof of the factory building or beam frame, it can transport materials directly in the air. The Freestanding bridge crane can be a very simple double-rail device, or a very complex suspended monorail system. Freestanding bridge cranes have simple operations such as manual operation and complex operations achieved by an automated system with integrated calculation control.
Application
The flexible suspension crane is especially suitable for areas with a lot of equipment, short transportation distance and high working frequency. It is widely used in the following industries: automobiles, shipbuilding, electronic assembly, food production, machinery production, warehouses, etc.
Features
- Good reliability and high stability
The components of the Freestanding bridge crane are all standard modules. The main body is composed of three types of cold-rolled sections of high-strength steel, which has good rigidity and light weight, ensuring the stability of the system.
- Good adaptability
The Freestanding bridge crane can be flexibly designed and installed according to the individual workstations of the factory.
- Easy to install, economical and efficient
Freestanding bridge crane installation and debugging is very convenient. The connection between the profile and each standard module can only be done with bolts. Using the Freestanding bridge crane, the factory can save space and area, reduce energy consumption, thereby improving the efficiency of the enterprise.
Specification
Capacity | 0-3t |
Span | 0.7-12m |
Lifting height | 45728m |
Work class | A3-A5 |
Power supply | 380V, 50Hz, 3-phase or customized |
Control method | Pendant control, remote control, manual control |
Travelling mode | Manual or electric |
Type of Freestanding Bridge Crane

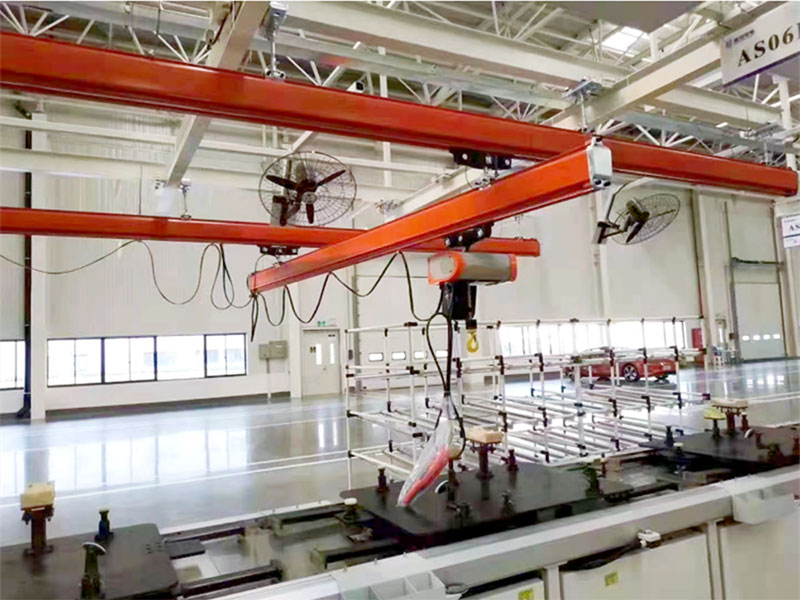

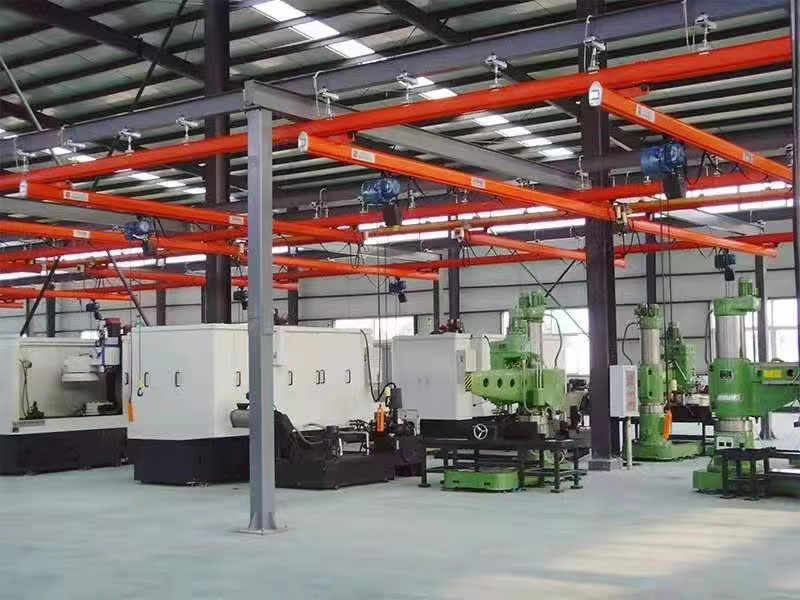

Advantages of Flexible Bridge Crane
- Efficient. Considerable cost and time savings. Simplified installation process before the system is put into use. In addition, the new KBK aluminum rail system requires even less maintenance than previous low-maintenance products.
-
Using the most advanced technology. In addition to its excellent technical performance, the independent crane aluminum rail system is also beautiful and stylish in appearance. This system is more suitable for modern production and user-friendly workstations.
-
Runs extremely smoothly.
-
Installation is more convenient.
-
Load capacity up to 3,000kg.
-
Ergonomically designed to make handling heavy loads easier.
-
Lower noise levels.
-
The system is almost maintenance-free.
-
Two types of rails can integrate built-in sliding conductors.

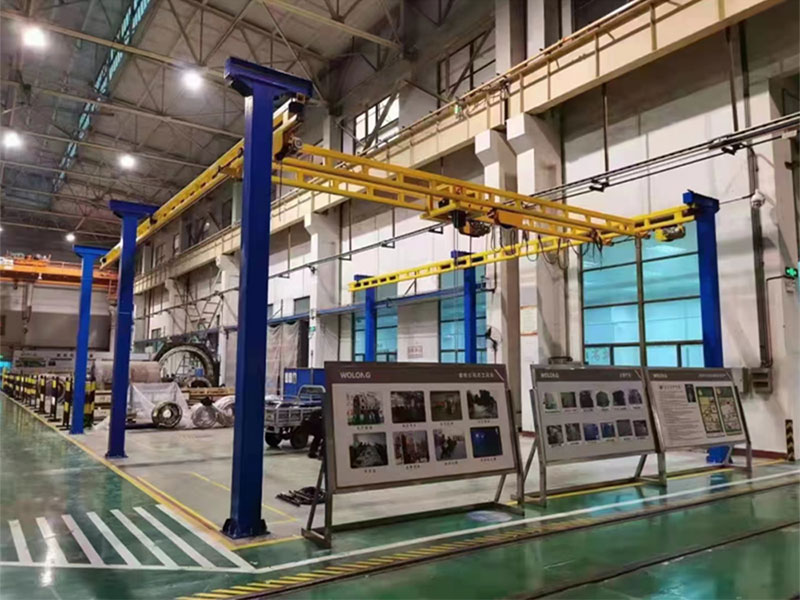

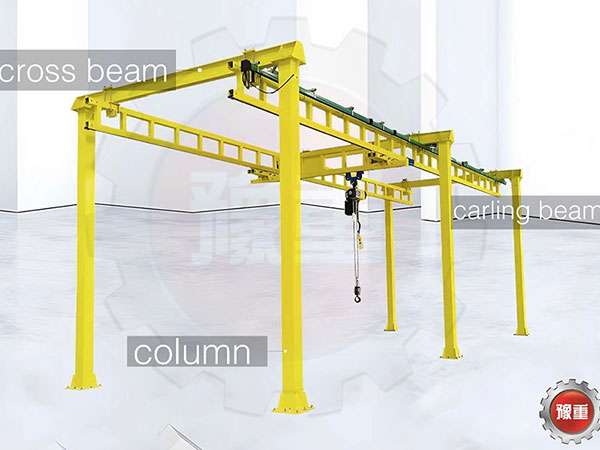

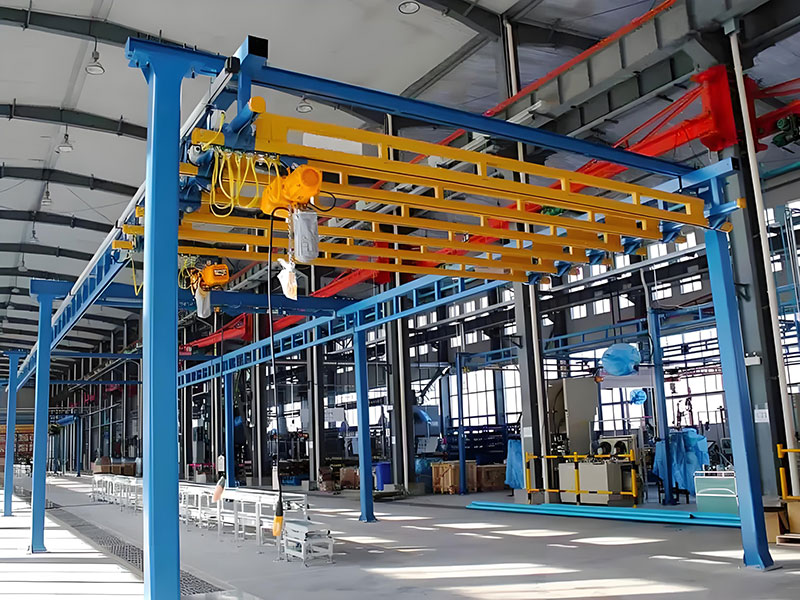

Advantages of Rigid Freestanding Bridge Crane
- The closed track design can effectively prevent dust from entering, thereby reducing the wear and tear of the trolley wheels and extending the service life.
-
The 2° slope design can effectively ensure that the car is in the center of the track and minimize sliding resistance.
-
The track is cold-rolled in one step without welding and has high strength.
-
It is light in weight, effectively reducing the pressure on structural support and significantly reducing costs.
-
Installed independently on the ground, no additional support is required. According to specific production needs, the extended load capacity can reach 2000kg and the span can reach more than 10m. Some track and trolley designs and modular designs are expandable. The rigid connection and unique guide wheel design can be easily operated manually to ensure that the movement is not diagonal, rocking, and stuck, improving precise positioning and reducing labor intensity for workers.
