Foundry Overhead Crane

Foundry Overhead Crane
  • Foundry Overhead Crane
  • Foundry Overhead Crane
  • Foundry Overhead Crane
  • Foundry Overhead Crane
  • Foundry Overhead Crane

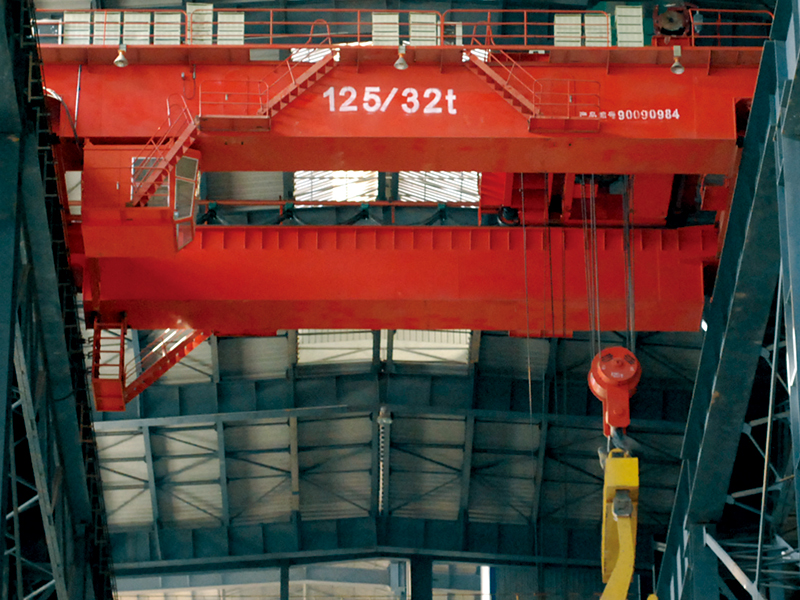

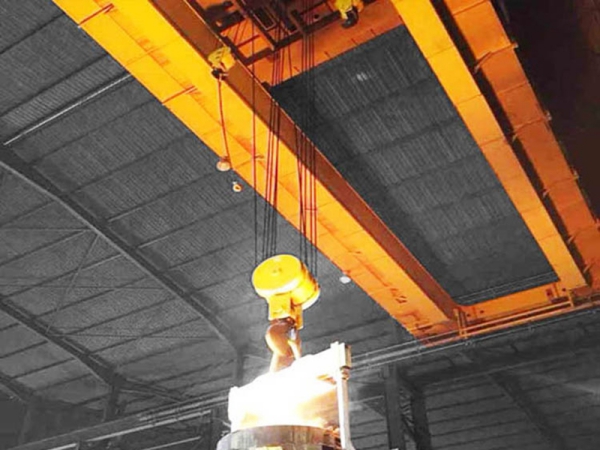

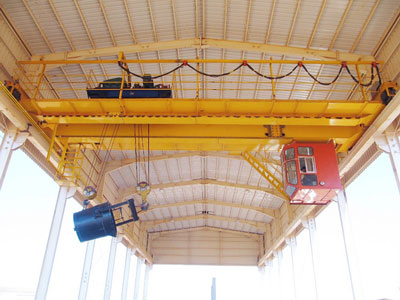

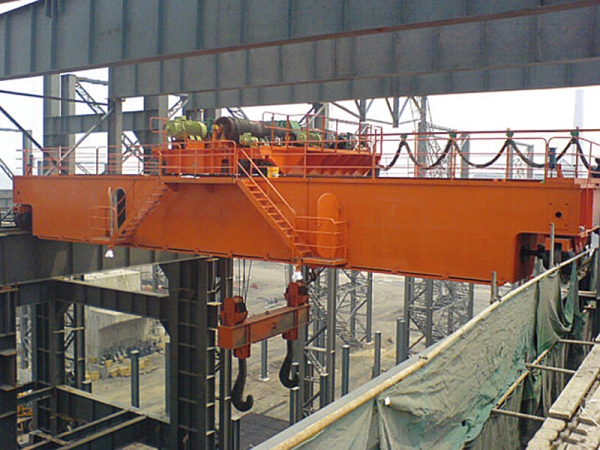

Foundry overhead crane is mainly composed of bridge, hoist, hook, trolley mechanism and electric part. The main hook employs the constant-spacing connecting traverse as the load handling device to hoist steel ladle and the auxiliary hook acts in concert with the main hook to accomplish pouring of molten steel slag, and other auxiliary hoisting.

Specification
Model QDY YZ
Loading capacity 5 ~ 75t 75 ~ 350t
Lifting height customized
Lifting speed Varies with lifting capacity
Span 10.5 ~ 31.5 m 15 ~ 38 m
Lifting mechanism Winch trolley
Working class A7/A8
Working temperature -20 ~ +60 ºC
Power supply AC-3-phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-36 / 48V
Motor protection class IP54, IP55, IP65
Control mode Cabin, wireless remote, pendant push button control
Features
  • Suits for heavy work in steel plants
  • Start and stop running smoothly
  • Safe and reliable driving
  • Long service life
  • High quality and competitive price
Application

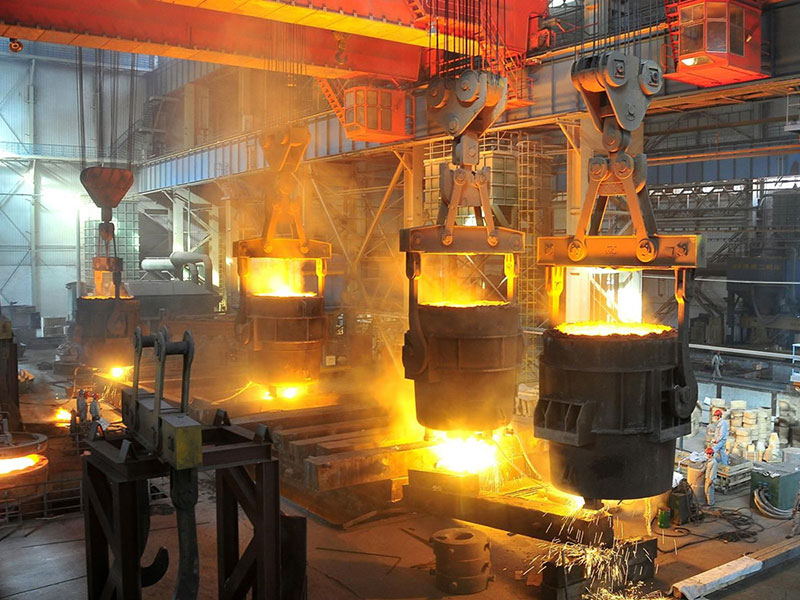

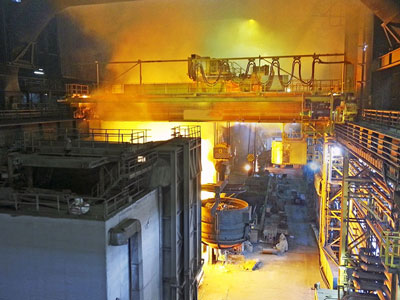

The foundry overhead crane is usually used for lifting and pouring metal. It’s especially suitable for transporting hot solid metal in foundries, steel plants and other places.
