Single Girder Semi-Gantry Crane

Single Girder Semi-Gantry Crane
  • Single Girder Semi-Gantry Crane
  • Single Girder Semi-Gantry Crane
  • Single Girder Semi-Gantry Crane
  • Single Girder Semi-Gantry Crane
  • Single Girder Semi-Gantry Crane

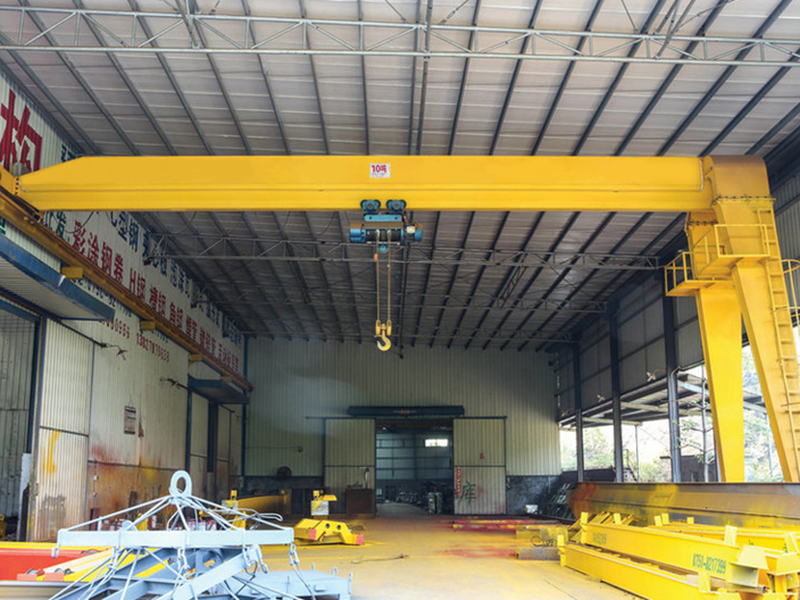

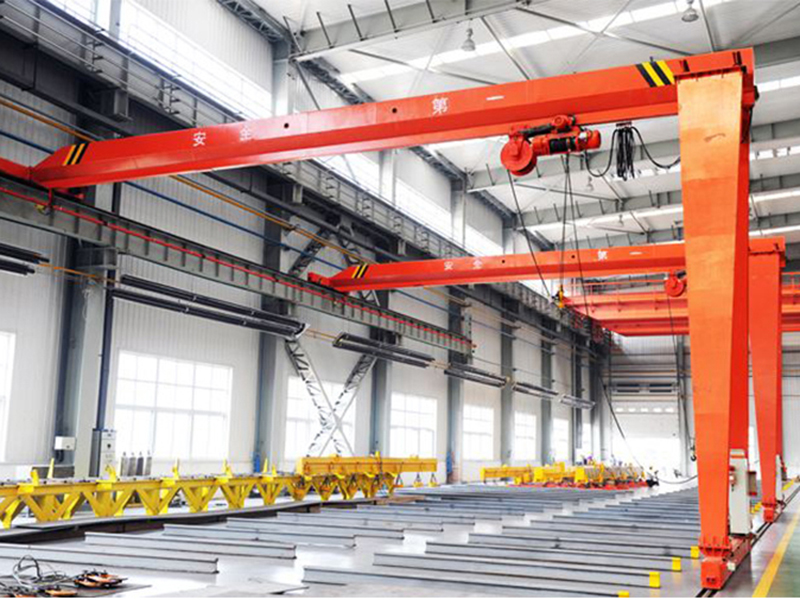

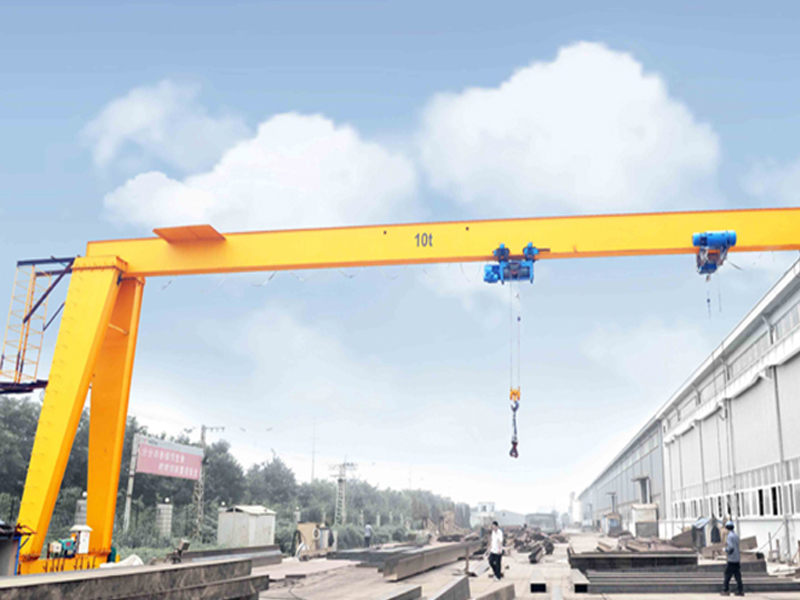

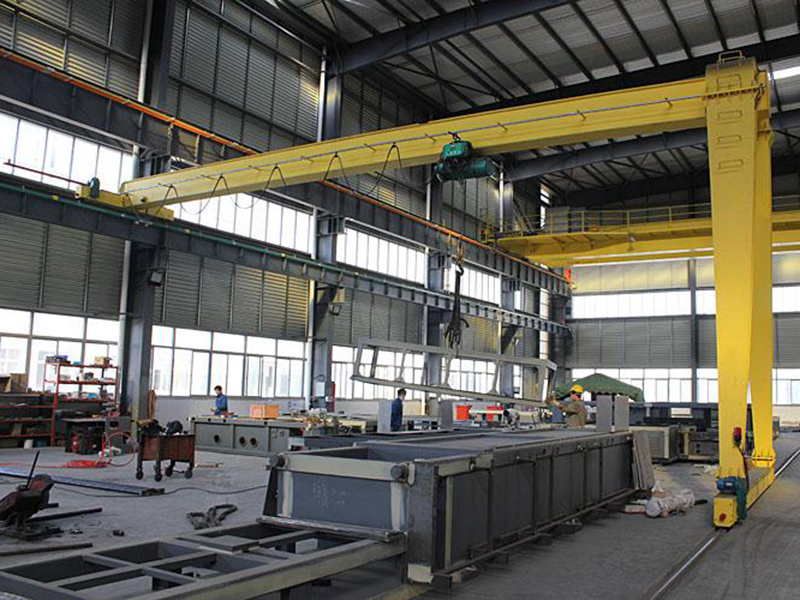

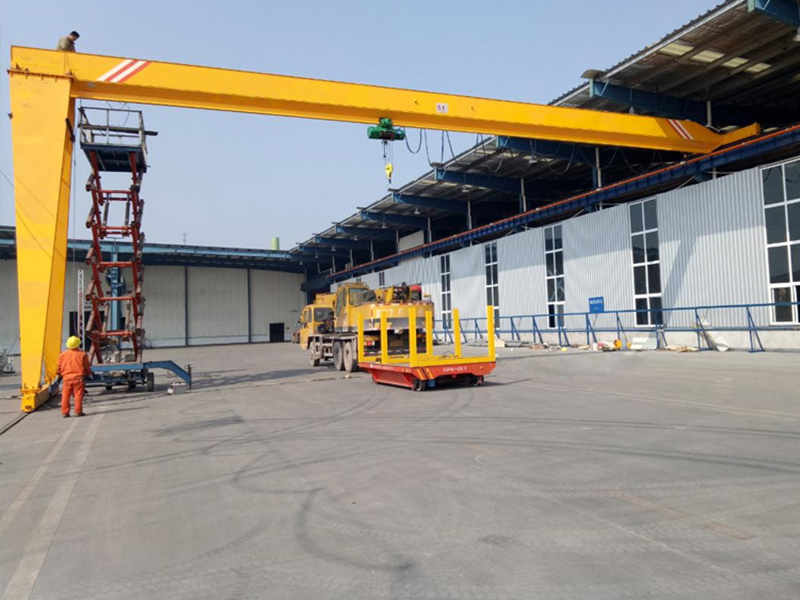

Single-beam semi-gantry cranes feature simple structure, easy installation, light weight, and good wind resistance. The main beams are mostly inclined rail box structures. Compared with the double beam crane, the lifting weight is smaller, generally ≤50t, and the span is ≤35m. It can be used with CD1 and MD1 hoist and is available with remote control and floor control.

Specification
Lifting capacity 2t - 20t
Span 5m - 20m
Lifting height 3m - 60m or customized
Lift speed 0.35-3.5 m/min, variable speed available
Working class A3-A5
Working temperature -25~+40C
Power supply 380V, 50Hz, 3-phase
Features
  • Reasonable structure and good performance
  • Smooth operation
  • Simple and reliable lifting work
  • Low working noise
  • Spacious cabin, wide view
  • Convenient maintenance and energy saving
Application

The single girder semi-gantry crane is usually used for handling work in workshops, construction sites, and cargo yards.
