Single Beam Gantry Crane, with L-shaped Legs

Single Beam Gantry Crane, with L-shaped Legs
  • Single Beam Gantry Crane, with L-shaped Legs
  • Single Beam Gantry Crane, with L-shaped Legs
  • Single Beam Gantry Crane, with L-shaped Legs
  • Single Beam Gantry Crane, with L-shaped Legs
  • Single Beam Gantry Crane, with L-shaped Legs

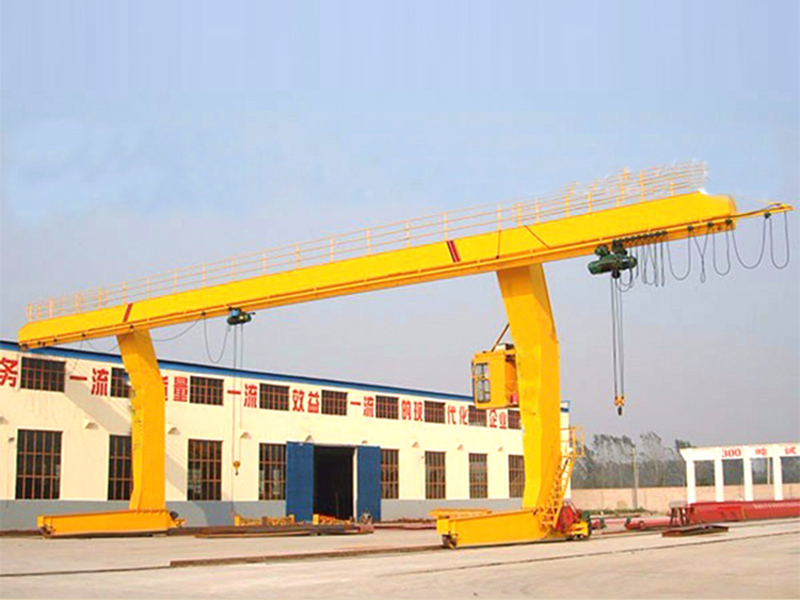

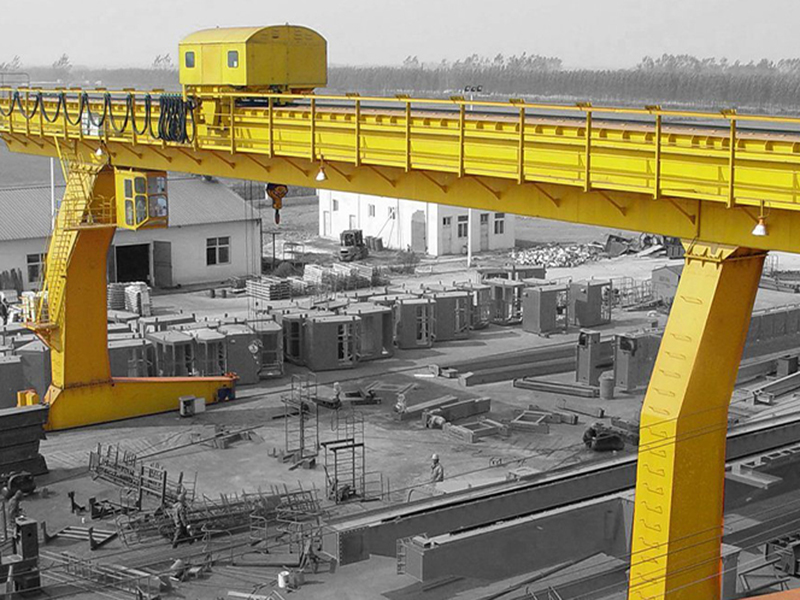

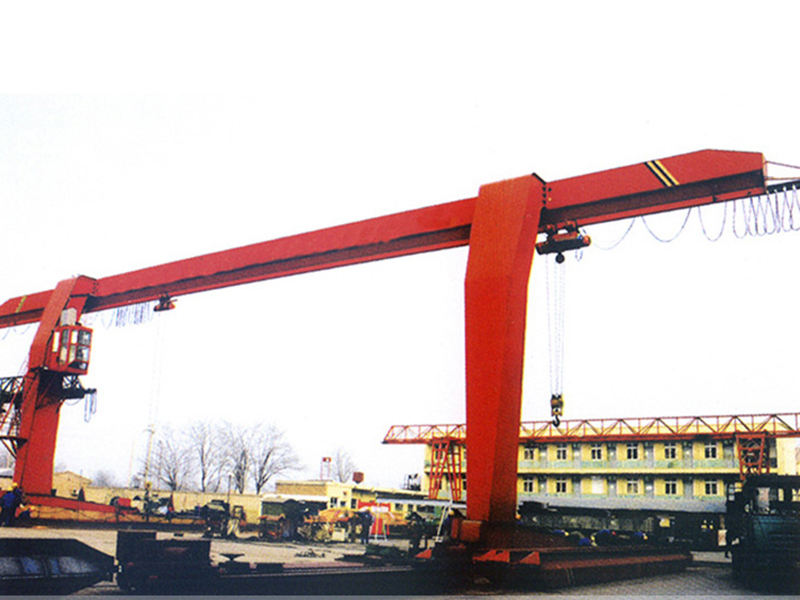

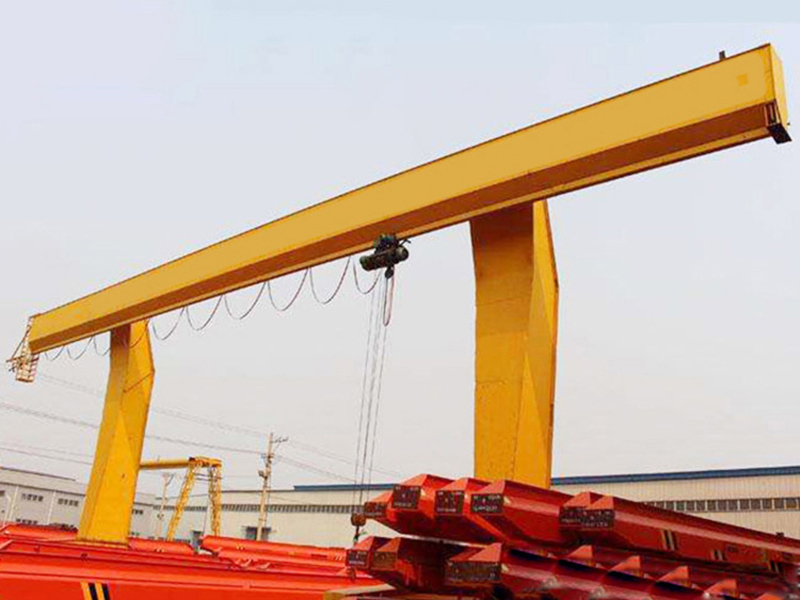

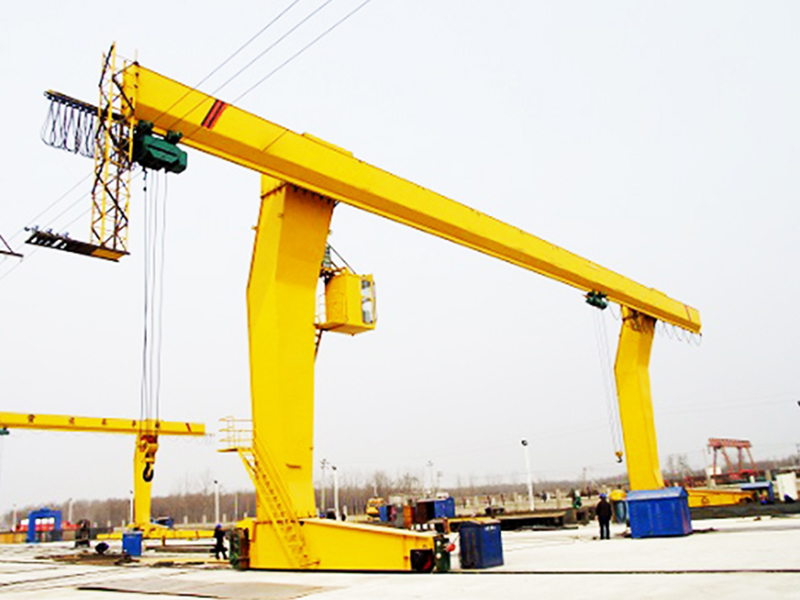

L type gantry crane is a single-beam gantry crane, and its cost is lower than that of a double-beam gantry crane. It has a wide range of applications and can be used for general lifting operations, such as loading and unloading, transporting, and transferring goods in storage yards and railway stations.

Specification
Lifting capacity t 5 10 20
Span m 16, 20, 30 16, 20, 30 18, 26, 35
Lifting height m 9 9 9
Travelling speed Ground m/min 20 20 20
Controlling room m/min 20, 30, 40 20, 30, 40 30, 40
Electric hoist Type   CD1 MD1
Lifting speed m/min 8 or 0.8/8 7 or 0.7/7 3.5 or 0.35/3.5
Travelling speed m/min 20 20/30 20/30
Working class   A3
Power source   3-phase, AC 380V, 50HZ
Features
  • Reasonable structure and good performance
  • Easy operation
  • High operation safety
  • Low working noise
  • Convenient and easy maintenance
Application

The L type gantry crane is generally used for lifting long cargo, such as ladle, steel pipe, etc., which is convenient for cargo turnover and electric trolley driving.
